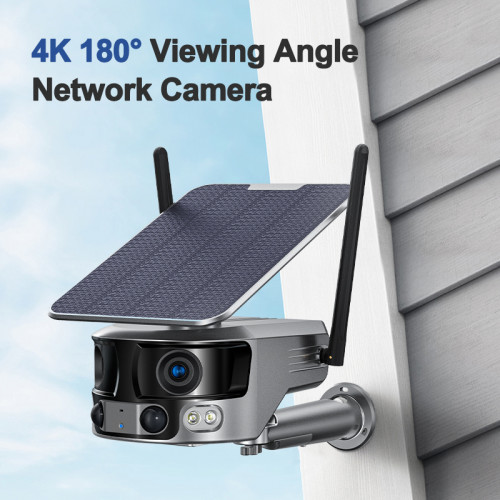

- 180 Degree Viewing Angle Camera
Solar Charging Camera
4G Connectivity for LIVE View
Extendible and Movable Solar Panel – Allows unit to be installed anywhere
Dual charging options to ensure continuous power supply
180° camera coverage for monitoring of three corridors, reducing installation and hardware costs
Multiple installation methods available for easy setup based on the intended environment, whether indoor or outdoor
Versatile usage in various settings, including but not limited to factories, communities, and farms, that require broad monitoring coverage - APP : Niview
| Model | SPTK-SWS180-DL-4G | |
| Comprehensive | Image sensor | 4MP+4MP HD CMOS Dual Sensor |
| Frame Rate | 1~30fps | |
| Resolution | 8MP(5120*1440) | |
| Networking Method | 4G | TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD(Full Netcom) |
| Alarm Mode | Detection Mode | PIR +Radar Dual Induction Detection |
| Detection Distance | 0~10M | |
| Detection Angle | 120° | |
| Alarm Method | Double Induction Confirmation Push Alarm Message to Mobile Phone | |
| Night Vision Mode | IR Distance | 8pcs IR Array,night vision 40M |
| While Light | 4pcs high power LED | |
| Sound | Built-in Speaker | 2W |
| Built-in Microphone | Monitoring Range 10M | |
| Audio Compression | PCM/G.726, Two Way Audio | |
| Lens | Wide-angle Lens | 2PCS 3.6mm/180° wide-angle lens |
| Storage | Cloud Storage | Cloud Storage (Alarm Recording) |
| Local Storage | TF Card (Max 128G) | |
| Power Supply | Power Supply Mode | Solar Panel+18650 Battery |
| Solar Cell Power | 6W | |
| Battery Capacity | Maximum Support 18000mA Lithium Battery | |
| Standby Power | 0.003W | |
| Other | Working Environment | Indoor / Outdoor |
| Waterproof Level | IP67 | |
| Working Humidity | 0%~90%RH | |
| Warranty | 1 Year | |
Parameters:
- Resolution – 5120*1440
- Recording Storage – SD Card and Cloud Storage
- Human Motion Tracking- Support
- Net Weight – 1.25kg
- Working Temp. : -20-50 Degrees Celsius
- Power Voltage 5V DC
- Built-in Battery : 18000mAh
- Audio Input: Built in 38db Microphone
- Audio Output 8 2W
- Camera Size: Body-230*160*140mm
