DESCRIPTION

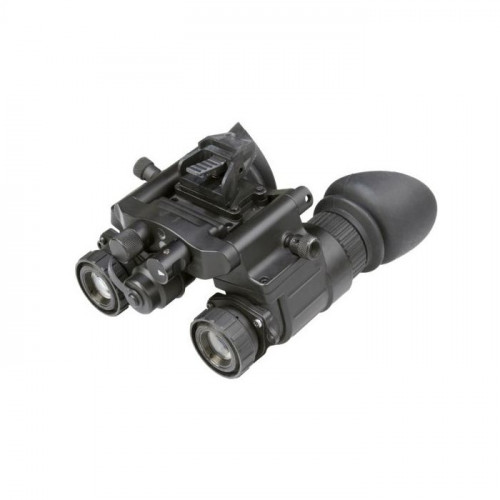

The AGM NVG50 NL1i Dual Tube Night Vision Goggle/Binocular is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photo cathode tube is protected. The NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
FEATURES
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Manual gain control
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
SPECIFICATIONS
| Image Intensifier Tube | Gen 2+ or Gen 3 |
| Magnification | 1x |
| Lens System | 19 mm, F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +2 dpt |
| Interpupillary Distance | 56 to 72 mm |
| Eye Relief | 17 mm |
| LED Indicators (in the FOV) | Low Battery, IR On, Excessive Light Condition |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C |
| Storage Temperature Range | -50°C to +70°C |
| Weight | 615 g |
| Overall Dimensions | 112 × 118 × 74 mm |
